NPT Male Connector Manufacturer & Exporter
Stainless Steel Male Connector Manufacturer, NPT Male Connector Exporter, Duplex Steel Male Connector Supplier, Brass Male Connector NPT Stockist, Nickel Alloy Male Connector Dealer, Inconel Male Connector, SS Male Connector Manufacturer in India.
Manufacturer & Supplier of Monel Male Connector, Hastelloy Male Connector NPT Trader, Titanium NPT Male Connector, Alloy Steel Male Connector, Carbon Steel NPT Male Connector Stockist, Copper Male Connector Manufacturer in Mumbai, India

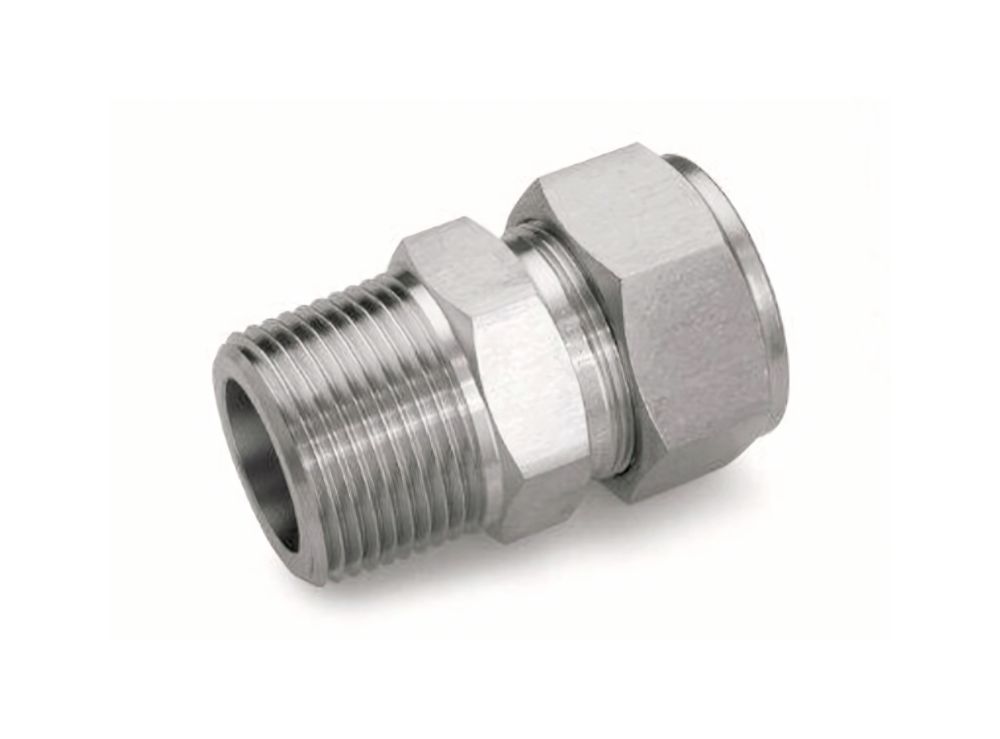

Bhansali Component & Fasteners' NPT Male Connectors are designed to provide great performance in severe industrial applications requiring fluid and gas transport. These connectors, which have National Pipe Tapered (NPT) threads, provide leak-tight, secure connections in hydraulic, pneumatic, and instrumentation systems. Our fittings are carefully manufactured on sophisticated CNC and VMC equipment and are compatible with a wide range of tube diameters, meeting global reliability and durability standards. Whether you're working with stainless steel, brass, or carbon steel systems, our NPT Male Connectors are designed to withstand high pressure and corrosive conditions.
Bhansali Component & Fasteners, a reputed manufacturer and supplier of tube fittings in India, provides both standard and bespoke solutions based on your needs. Our NPT Male Connectors are used extensively in the oil and gas, petrochemical, chemical processing, and power generating sectors. Contact our team at info@bhansalicomponent.com today for bulk purchases, technical assistance, or custom machining requests. We are committed to delivering perfection and performance.
Contact us today with your specific instrumentation tube fittings requirements for quick quote and details.
Tube Fittings Manufacturer in India, Instrumentation Tube Fittings Supplier, Industrial Tube Fittings Exporter, High Pressure Tube Fittings Manufacturer, Compression Tube Fittings Stockist, NPT Tube Fittings Manufacturer, Threaded Tube Fittings Supplier, Metric & Imperial Tube Fittings Exporter, Ferrule Fittings Manufacturer India.
NPT Male Connector Specifications:
| Product: | Male Connector NPT |
|---|---|
| Thread Type: | NPT (National Pipe Tapered Thread) |
| Sizes: | 1/16" to 2" (Custom sizes available on request) |
| Pressure Rating: | Up to 6000 PSI (Varies with size and material) |
| Connection Type: | Male Threaded (NPT) × Tube End / Compression End |
| Standards: | ASTM, ASME, SAE, ISO, DIN, BS, EN, JIS, IBR |
| Material: |
Stainless Steel: 202, 303, 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 317, 317L, 321, 347, 904L, 410, 416, 430F, 431 Duplex Steel: UNS S31803, S32205 Super Duplex Steel: UNS S32750, S32760 Inconel: 600, 625, 718 Incoloy: 800, 825, 800H/HT Monel: 400, K500 Nickel: 200, 201 Hastelloy: C22, C276, B2, B3, X Titanium: Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, etc. Brass: IS 319, ASTM B16, CZ121 Copper Alloy: ASTM B62, C70600, C71500 Carbon Steel: A105, EN8, C20, C45 Alloy Steel: ASTM A182 F5, F9, F11, F22, F91 SMO 254: UNS S31254 |
| Finish: | Natural, Electro-Polished, Zinc Plated, Nickel Plated, Custom Coating |
| Applications: | Oil & Gas, Chemical, Petrochemical, Power Plants, Marine, Instrumentation, Water Treatment, and General Industrial Use |
Technical Specifications & Size Chart – Male Connector NPT MCN (Imperial Series)
|
Tube O.D inch |
NPT thread | A | C | D | R | W | Min bore | |||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | ||||
| 1/16 | 1/16 | 0.92 | 9.7 | 0.43 | 10.9 | 0.78 | 19.8 | 0.38 | 9.7 | 5/16 | 0.05 | 1.3 | ||
| 1/16 | 1/8 | 0.98 | 24.9 | 0.43 | 10.9 | 0.84 | 21.3 | 0.38 | 9.7 | 7/16 | 0.05 | 1.3 | ||
| 1/16 | 1/4 | 1.20 | 30.5 | 0.43 | 10.9 | 1.06 | 26.9 | 0.56 | 14.2 | 9/16 | 0.05 | 1.3 | ||
| 1/8 | 1/16 | 1.16 | 29.5 | 0.60 | 15.2 | 0.91 | 23.1 | 0.38 | 9.7 | 3/8 | 0.09 | 2.3 | ||
| 1/8 | 1/8 | 1.16 | 29.5 | 0.60 | 15.2 | 0.91 | 23.1 | 0.38 | 9.7 | 7/16 | 0.09 | 2.3 | ||
| 1/8 | 1/4 | 1.38 | 35.1 | 0.60 | 15.2 | 1.13 | 28.7 | 0.56 | 14.2 | 9/16 | 0.09 | 2.3 | ||
| 1/8 | 3/8 | 1.41 | 35.8 | 0.60 | 15.2 | 1.15 | 29.2 | 0.56 | 14.2 | 11/16 | 0.09 | 2.3 | ||
| 3/16 | 1/16 | 1.20 | 30.5 | 0.63 | 16.0 | 0.95 | 24.1 | 0.38 | 9.7 | 7/16 | 0.13 | 3.3 | ||
| 3/16 | 1/8 | 1.20 | 30.5 | 0.63 | 16.0 | 0.95 | 24.1 | 0.38 | 9.7 | 7/16 | 0.13 | 3.3 | ||
| 3/16 | 1/4 | 1.41 | 35.8 | 0.63 | 16.0 | 1.16 | 29.5 | 0.56 | 14.2 | 9/16 | 0.13 | 3.3 | ||
| 1/4 | 1/16 | 1.30 | 33.0 | 0.70 | 17.8 | 1.00 | 25.4 | 0.38 | 9.7 | 1/2 | 0.13 | 3.3 | ||
| 1/4 | 1/8 | 1.30 | 33.0 | 0.70 | 17.8 | 1.00 | 25.4 | 0.38 | 9.7 | 1/2 | 0.19 | 4.8 | ||
| 1/4 | 1/4 | 1.49 | 37.9 | 0.70 | 17.8 | 1.19 | 30.2 | 0.56 | 14.2 | 9/16 | 0.19 | 4.8 | ||
| 1/4 | 3/8 | 1.52 | 38.6 | 0.70 | 17.8 | 1.22 | 31.0 | 0.56 | 14.2 | 11/16 | 0.19 | 4.8 | ||
| 1/4 | 1/2 | 1.74 | 44.2 | 0.70 | 17.8 | 1.44 | 36.6 | 0.75 | 19.1 | 7/8 | 0.19 | 4.8 | ||
| 5/16 | 1/8 | 1.34 | 34.0 | 0.73 | 18.6 | 1.05 | 26.7 | 0.38 | 9.7 | 9/16 | 0.19 | 4.8 | ||
| 5/16 | 1/4 | 1.52 | 38.6 | 0.73 | 18.6 | 1.23 | 31.2 | 0.56 | 14.2 | 9/16 | 0.25 | 6.4 | ||
| 5/16 | 3/8 | 1.54 | 39.1 | 0.73 | 18.6 | 1.25 | 31.8 | 0.56 | 14.2 | 11/16 | 0.25 | 6.4 | ||
| 3/8 | 1/8 | 1.38 | 35.1 | 0.76 | 19.3 | 1.09 | 27.7 | 0.38 | 9.7 | 5/8 | 0.19 | 4.8 | ||
| 3/8 | 1/4 | 1.57 | 39.9 | 0.76 | 19.3 | 1.28 | 32.5 | 0.56 | 14.2 | 5/8 | 0.28 | 7.1 | ||
| 3/8 | 3/8 | 1.57 | 39.9 | 0.76 | 19.3 | 1.28 | 32.5 | 0.56 | 14.2 | 11/16 | 0.28 | 7.1 | ||
| 3/8 | 1/2 | 1.79 | 45.5 | 0.76 | 19.3 | 1.50 | 38.1 | 0.75 | 19.1 | 7/8 | 0.28 | 7.1 | ||
| 3/8 | 3/4 | 1.82 | 46.2 | 0.76 | 19.3 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.28 | 7.1 | ||
| 1/2 | 1/8 | 1.51 | 38.4 | 0.86 | 21.8 | 1.13 | 28.7 | 0.38 | 9.7 | 13/16 | 0.19 | 4.8 | ||
| 1/2 | 1/4 | 1.69 | 42.9 | 0.86 | 21.8 | 1.31 | 33.3 | 0.56 | 14.2 | 13/16 | 0.28 | 7.1 | ||
| 1/2 | 3/8 | 1.69 | 42.9 | 0.86 | 21.8 | 1.31 | 33.3 | 0.56 | 14.2 | 13/16 | 0.41 | 10.4 | ||
| 1/2 | 1/2 | 1.88 | 47.8 | 0.86 | 21.8 | 1.50 | 38.1 | 0.75 | 19.1 | 7/8 | 0.41 | 10.4 | ||
| 1/2 | 3/4 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.41 | 10.4 | ||
| 1/2 | 1 | 2.26 | 57.2 | 0.86 | 21.8 | 1.88 | 47.8 | 0.94 | 23.9 | 1.3/8 | 0.41 | 10.4 | ||
| 5/8 | 3/8 | 1.72 | 43.7 | 0.86 | 21.8 | 1.34 | 34.0 | 0.56 | 14.2 | 15/16 | 0.41 | 10.4 | ||
| 5/8 | 1/2 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 15/16 | 0.50 | 12.7 | ||
| 5/8 | 3/4 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.50 | 12.7 | ||
| 3/4 | 1/2 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.1/16 | 0.50 | 12.7 | ||
| 3/4 | 3/4 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.1/16 | 0.63 | 16. | ||
| 3/4 | 1 | 2.19 | 55.6 | 0.86 | 21.8 | 1.81 | 46.0 | 0.94 | 23.9 | 1.3/8 | 0.63 | 16. | ||
| 7/8 | 3/4 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.3/16 | 0.72 | 18.3 | ||
| 1 | 1/2 | 2.25 | 57.2 | 1.04 | 26.4 | 1.78 | 45.2 | 0.75 | 19.1 | 1.3/8 | 0.50 | 12.7 | ||
| 1 | 3/4 | 2.25 | 57.2 | 1.04 | 26.4 | 1.78 | 45.2 | 0.75 | 19.1 | 1.3/8 | 0.72 | 18.3 | ||
| 1 | 1 | 2.44 | 62.0 | 1.04 | 26.4 | 1.97 | 50.0 | 0.94 | 23.9 | 1.3/8 | 0.88 | 22.2 | ||
Technical Specifications & Size Chart – Male Connector NPT-MMCN ( Metric Series)
|
Metric tubing |
||||||||||
| Tube O.D mm | NPT thread | Part Number | A | C | D | R |
W inch |
Min bore mm |
||
| mm | mm | mm | mm | |||||||
| 3 | 1/8 | 29.7 | 15.3 | 23.1 | 9.5 | 7/16 |
2.4 |
|||
| 3 | 1/4 | 35.3 | 15.3 | 28.7 | 14.3 | 9/16 | 2.4 | |||
| 4 | 1/8</td | 30.4 | 16.1 | 23.8 | 9.5 | 7/16 | 3.0 | |||
| 4 | 1/4 | 36.0 | 16.1 | 29.4 | 14.3 | 9/16 | 3.0 | |||
| 6 | 1/8 | 32.9 | 17.7 | 25.4 | 9.5 | 1/2 | 3.2 | |||
| 6 | 1/4 | 37.7 | 17.7 | 30.2 | 14.3 | 9/16 | 4.8 | |||
| 6 | 3/8 | 38.5 | 17.7 | 31.0 | 14.3 | 11/16 | 4.8 | |||
| 6 | 1/2 | 44.0 | 17.7 | 36.5 | 19.1 | 7/8 | 4.8 | |||
| 8 | 1/8 | 34.2 | 18.6 | 26.7 | 9.5 | 9/16 | 4.8 | |||
| 8 | 1/4 | 38.7 | 18.6 | 31.2 | 14.3 | 9/16 | 6.4 | |||
| 8 | 3/8 | 39.3 | 18.6 | 31.8 | 14.3 | 11/16 | 6.4 | |||
| 8 | 1/2 | 44.8 | 18.6 | 37.3 | 19.1 | 7/8 | 6.4 | |||
| 10 | 1/4 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.1 | |||
| 10 | 3/8 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.9 | |||
| 10 | 1/2 | 45.7 | 19.5 | 38.1 | 19.1 | 7/8 | 7.9 | |||
| 12 | 1/4 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 7.1 | |||
| 12 | 3/8 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 9.5 | |||
| 12 | 1/2 | 48.2 | 22.0 | 38.1 | 19.1 | 7/8 | 9.5 | |||
| 12 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 9.5 | |||
| 16 | 3/8 | 44.2 | 22.0 | 34.1 | 14.3 | 15/16 | 10.3 | |||
| 16 | 1/2 | 49.0 | 22.0 | 38.9 | 19.1 | 15/16 | 12.7 | |||
| 16 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 12.7 | |||
| 18 | 1/2 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 12.7 | |||
| 18 | 3/4 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 15.1 | |||
| 20 | 1/2 | 50.6 | 22.0 | 42.2 | 19.1 | 1.3/16 | 12.7 | |||
| 20 | 3/4 | 52.3 | 22.0 | 42.2 | 19.1 | 1.3/16 | 15.9 | |||
| 25 | 3/4 | 57.5 | 26.5 | 45.2 | 19.1 | 1.3/8 | 18.3 | |||
| 25 | 1 | 62.3 | 26.5 | 50.0 | 23.8 | 1.3/8 | 22.2 | |||
Industries & Applications where our NPT Male Connector are used:
Our NPT Male Connectors are widely used across a diverse range of industries due to their reliability, durability, and leak-proof performance. These include the oil and gas sector, chemical and petrochemical plants, power generation facilities (including thermal, nuclear, and renewable energy), marine and offshore engineering, and the pharmaceutical and biotechnology industries. They are also commonly used in water and wastewater treatment, food and beverage processing, aerospace and defense, hydraulic and pneumatic systems, instrumentation and control systems, pulp and paper mills, mining and mineral processing, HVAC and refrigeration systems, and automotive and transportation sectors, etc.
Prominent Countries where we Export NPT Male Connector:
Bhansali Component & Fasteners is manufacturing and exporting NPT Male Connector across the world. Some of our important export destinations includes: Germany, Sweden, Switzerland, Denmark, USA, Canada, Finland, Norway, France, Netherland, and other European and Noth American
